CAN (Open) Real-Time Stack for Windows

Master Stack

Programming Library (32/64 Bit)

  Download Manual CAN (Open) Master Documentation
  Download Software CAN (Open) Master Software

  Multi-Adapter CAN Support
SJA-1000 Chip Support
PITA Chip Support
CAN Frame (11-Byte Mode)
CAN Frame (13-Byte Mode)
COM-To-CAN Interface
Core interface for CAN (Open) (Real-Time-Level1)
Core interface for CAN (Open) (Real-Time-Level2)
Priority controlled frame buffer management
True 32- and 64- bit mode
High accurate data time stamping (µsec)

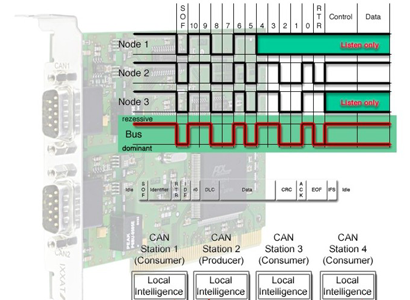

Windows Real-Time CAN (Open) Core
Additional Tools
Windows Real-Time CAN (Open) Tools   SYCOMM - CAN Analyzer
Supported Hardware
  SJA1000 or PITA chips
PCI Adapters
PCIe (PCI Express) Adapter
ExpressCard/34
ExpressCard/54
PCMCIA Cardbus
Windows Real-Time CAN (Open) Adapter
Real-Time CAN (Open) Library for Windows
The idea of further abstraction (real-time communication for different transport systems, such as serial communications, Ethernet (TCP / IP) and CANBUS (...) is realized with the SYBERA Transport Libraries, the so-called Real-Time cores. Each Real-Time core is based on the X-Realtime Engine SYBERA. The core allow both, real-time Level1 (collecting and buffering of data in real-time, without loss of data), and Real-Time Level 2 (the cyclic function operating in Real-Time). The Real-Time CAN (Open) Library for Windows (32- and 64-bit) allows the handling of raw CAN frames at real-time. In this case, the real-time tasks can be embedded within the application. Data exchange takes place via a shared memory area. The Real-Time core only need simple, passive harware. One of the great advantages is the adjustable scheduling time of incoming and outgoing data. A proprietary core interface, as well as the standard socket interface is available for the development of real-time applications. A fixed filter management determines the transfer direction of the CAN (Open) frames (core or COM interface) and enables the selection of individual frames. The available header files define all, for the processing of the core interface and the real-time necessary structures. The structural elements are combined hierarchically. The CAN Realtime Core supports all standard PCI (e) and PCMCIA adapter from Peak System, IXXAT, EMS and SYBERA.
CAN (Open) Master Functionality
At Realtime Level 1 incoming and outgoing data are decoupled by means of RX and TX ring buffers and controlled by forward and reverse indexing. Additional RealTime Level 2 offers the cyclical deterministic functional operation, thus allowing the implementation of real-time protocols. Therefore, the CAN (Open) frames are retrieved in the RAW format. RAW means that all data of the CAN (Open) frames are available for the functional operation and for the implementation of further protocols. Depending on the PC hardware and application, Real-time cycle times up to 50 usec may be realized. The CAN (Open) Core enables the operation of multiple adapters at the same time. For each adapter an indexed CAN (Open) stack is created.
CAN (Open) Master Technology
The Real-Time CAN (open) Core for Windows can operate with a passive SJA1000 or PITA SJA1000 chip adapter (also PCMCIA and PCI Express Adpater) and will be installed as a CAN device driver. When installing the CAN adapter Windows will automatically ask for a CAN device driver to install. SYBERA uses the method "Dynamic Jitter Compensation" with active and passive compensation within the realtime engine. Although the X-Real Time Engine works with a maximum native jitter of ca. 15 microseconds (depending on the hardware platform), it can be reduced by the dynamic compensation to less than 3 microseconds.
